Leveraging Hyperglass and NSX-T!

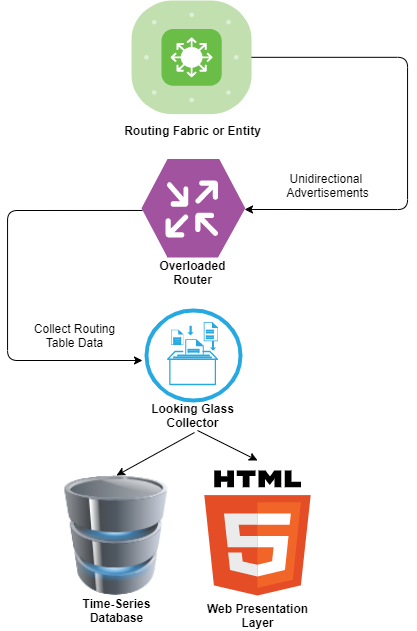

For this example deployment, I'll be using my NSX-T Lab as the fabric, VyOS for the Overloaded Router role, and trying out hyperglass:
Installation (VyOS)
I already have a base image for VyOS with its management VRF set up - and updating the base image prior to deployment is a breeze due to the vSphere 7 VM Template Check Out Feature.

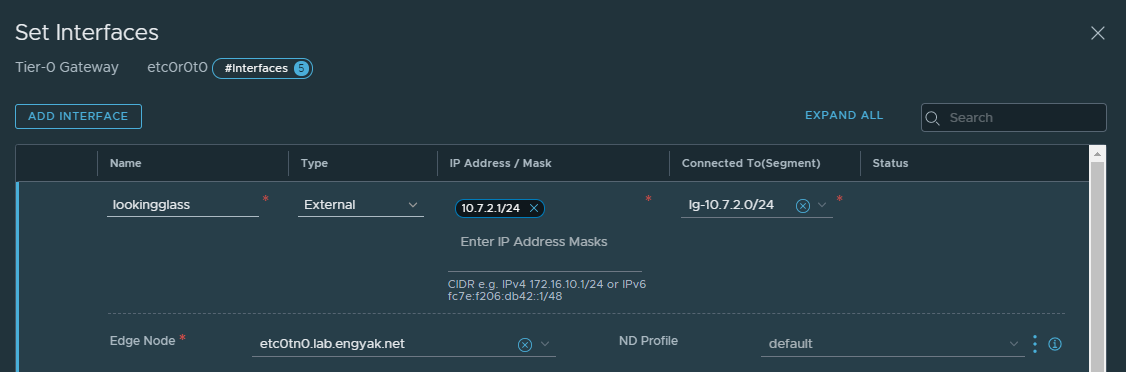

In this case, I'll deploy to an NSX-T External Port and peer up, with fully implemented ingress filtering:

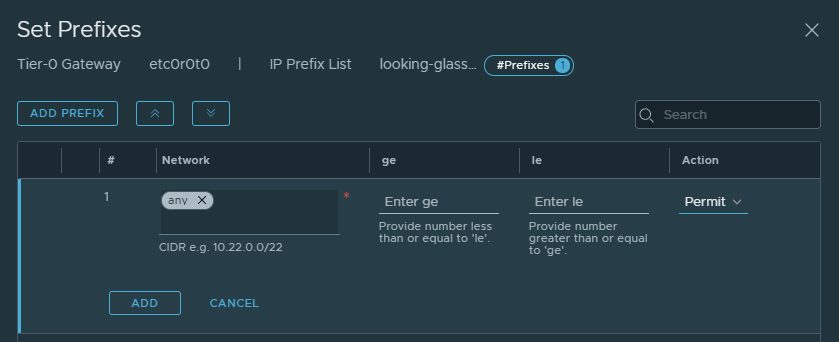

Export Filters - Permit all prefixes:

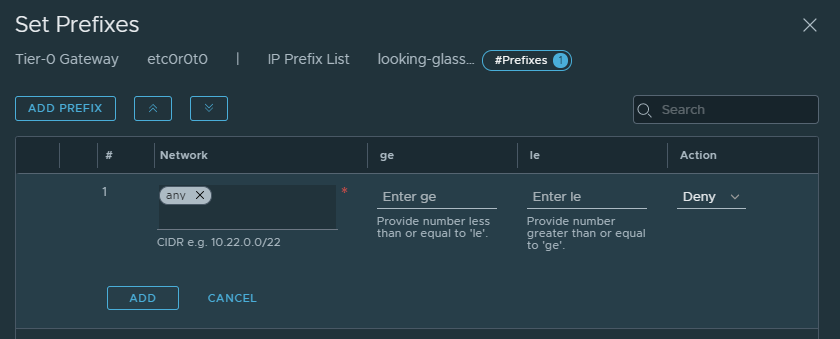

Import Filters - don't trust any prefixes from this router:

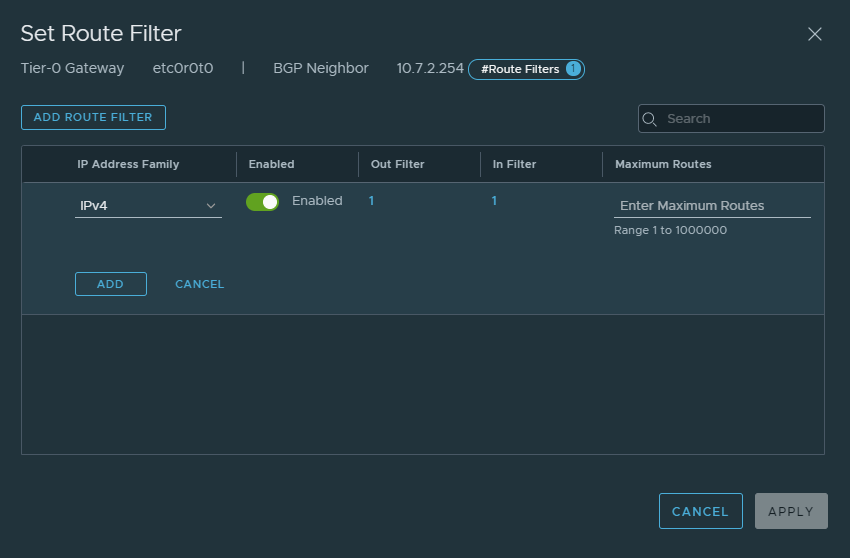

Set in the correct directions:

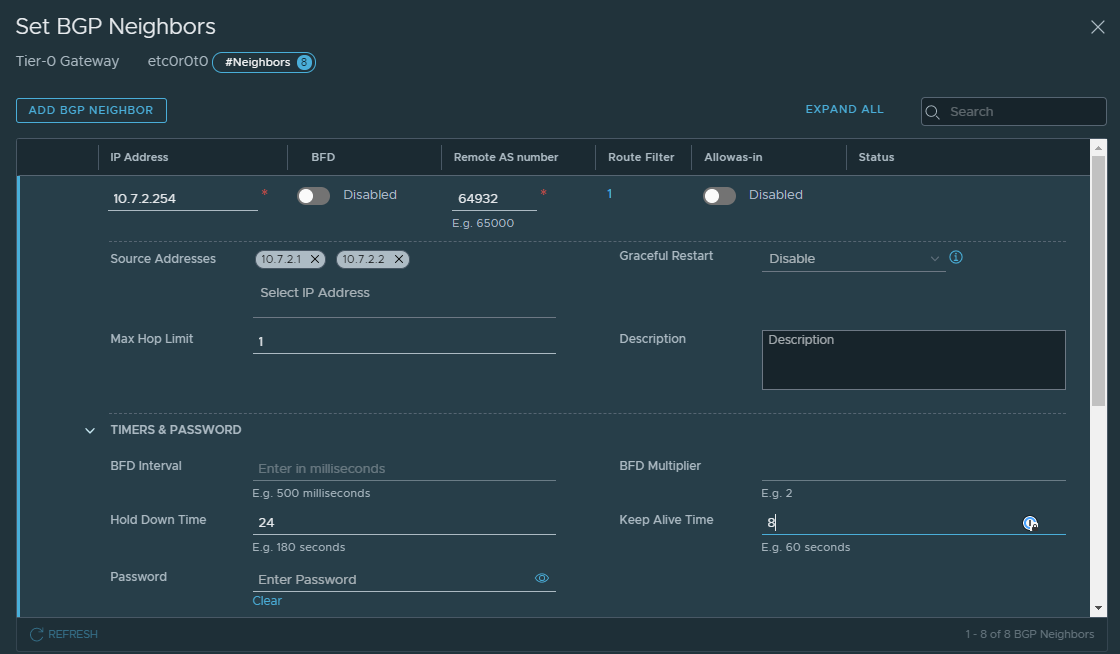

Configure the BGP Neighbors:
From here, we build the VNF, by adding the following configuration:
1protocols {
2 bgp 64932 {
3 address-family {
4 ipv4-unicast {
5 maximum-paths {
6 ebgp 4
7 }
8 }
9 ipv6-unicast {
10 maximum-paths {
11 ebgp 4
12 }
13 }
14 }
15 neighbor 10.7.2.1 {
16 remote-as 64902
17 }
18 neighbor 10.7.2.2 {
19 remote-as 64902
20 }
21 neighbor x:x:x:dea::1 {
22 address-family {
23 ipv6-unicast {
24 }
25 }
26 remote-as 64902
27 }
28 neighbor x:x:x:dea::2 {
29 address-family {
30 ipv6-unicast {
31 }
32 }
33 remote-as 64902
34 }
35 timers {
36 holdtime 12
37 keepalive 4
38 }
39 }
40}
Then, let's verify that BGP is working:
1
2vyos@vyos-lg-01:~$ show ip bgp summary
3
4IPv4 Unicast Summary:
5BGP router identifier 10.7.2.254, local AS number 64932 vrf-id 0
6BGP table version 156
7RIB entries 75, using 14 KiB of memory
8Peers 4, using 85 KiB of memory
9
10Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd PfxSnt
1110.7.2.1 4 64902 278 272 0 0 0 00:11:31 40 42
1210.7.2.2 4 64902 16 13 0 0 0 00:00:16 39 42
13x:x:x:dea::1 4 64902 234 264 0 0 0 00:11:43 NoNeg
14x:x:x:dea::2 4 64902 283 368 0 0 0 00:11:43 NoNeg
15
16Total number of neighbors 4
The VNF is configured! Now, we'll follow the application maintainer's instructions for installation: https://hyperglass.io/docs/getting-started
The documentation for install is pretty good - but some customization is still required. I built the following configuration files out - hyperglass leverages YAML as a configuration file format, examples are here. I did make some changes:
- Some combination of VyOS 1.4, MP-BGP, and/or VRF-lite changed the syntax for the BGP views around. Setting a commands file fixes this.
- VyOS driver is appending a host mask (/32, /128) on routes with no prefix specified.
- NB: I reached out to the maintainer (Matt Love) and he informed me that this was configurable per-VRF using the force-cidr option.
This particular tool has been extremely useful to me, as NSX-T still lacks comprehensive BGP visibility without CLI access - and even if it didn't, this will provide consumers an easy way to validate that prefixes have propagated, and where.
